Oracle Solaris 11 is a complete, integrated, and open platform engineered for large-scale enterprise environments. Its built-in Oracle Solaris Native Zones technology provides application virtualization through isolated, encapsulated, and highly secure environments that run on top of a single, common kernel. As a result, native zones provide a highly efficient, scalable, zero-overhead virtualization solution that sits at the core of the platform.
With the inclusion of the Kernel Zones feature, Oracle Solaris 11.2 provides a flexible, cost-efficient, cloud-ready solution that is perfect for the data center.
This article describes how to create a kernel zone in Oracle Solaris 11.2, as well as how to configure the kernel zone to your requirements, install it, and boot it.
You will learn about the two main methods of installing a kernel zone: direct installation and installation via an ISO image. In addition, you will learn about a third installation method that enables you to convert a native zone to a kernel zone. You will learn how to update a kernel zone so that it uses a different Oracle Solaris release than the release that is running in the host machine's kernel.
The examples in this article will leave you familiar with the basic procedures for installing, configuring, and managing kernel zones in Oracle Solaris 11.2.
Note: This article demonstrates how to update a kernel zone from Oracle Solaris 11.2 to a later release through examples that mention "Oracle Solaris 11.3" and "Oracle Solaris Next." These examples are purely hypothetical and are for demonstration purposes only; no release later than Oracle Solaris 11.2 is currently available.
The system administrator who owns the host system can choose to closely manage all the Oracle Solaris Zones on the system. Alternatively, the system administrator can assign rights to other system administrators for specific Oracle Solaris Zones. This flexibility lets you tailor an entire computing environment to the needs of a particular application.
Kernel zones, the newest type of Oracle Solaris Zones, provide all the flexibility, scalability, and efficiency of Oracle Solaris Zones while adding the capability to have zones with independent kernels. This capability is highly useful when you are trying to coordinate the updating of multiple zone environments belonging to different owners.
With kernel zones, the updates can be done at the level of an individual kernel zone at a time that is convenient for each owner. In addition, applications that have specific version requirements can run side by side on the same system and benefit from the high consolidation ratios that Oracle Solaris Zones provide.
![]()
Figure 1. Illustration of the three methods for creating kernel zones
Listing 1
You can see from the output in Listing 1 that kernel zones are supported.
There are some other hardware prerequisites; for a full list, see the Oracle Solaris Kernel Zones documentation.
Providing this hint is achieved by setting the
You can find this script and more information by visiting the My Oracle Support website and then accessing Doc ID 1663862.1.
Listing 2
Note: In Listing 2, there are no ZFS datasets associated with any specific zones. We will see later how these are created for you as you install zones. Also note that there are no virtual network interface card (VNIC) devices.
Let's also check the Oracle Solaris version of the global zone, as shown in Listing 3, because we will use this information later:
Listing 3
In Listing 3, we can see the version is Oracle Solaris 11.2.
Note: In this article, we will use
Solaris 11.2. (See "Understanding Oracle Solaris 11 Package Versioning" for an explanation about how to decipher the output when you query the entire package.)
Listing 4
We can also see that the system has a publisher set up:
Listing 5
In Listing 5, note that all we need to supply is the zone name (
By default, all Oracle Solaris Zones are configured to have an automatic VNIC called
We can also see that, as of yet, no storage has been created for our kernel zone:
We can verify that the kernel zone is now in the configured state by using the
Let's take a look at the default settings for the kernel zone that we have created. We can do this by passing the
Listing 6
From the output in Listing 6, we can see that the zone is called
What we don't see is the amount of CPU resources we have for this kernel zone. When nothing is specified, the default is to have one virtual CPU assigned. We'll see how to verify this later when we boot the kernel zone.
For this first installation, we are going to use what is called a direct installation. With a direct installation, the installer runs on the host. It will create and format the kernel zone's boot disk and install Oracle Solaris packages on that disk, using the host's package publishers. Since the installer is running on the host, the installer can install only the exact version of Oracle Solaris that it is actively running on the host.
This installation method makes use of the Oracle Solaris 11 Image Packaging System. You will need to make sure you have access to your Image Packaging System repository; in this case, we have network access to our repository. For more details on the Image Packaging System, see "Introducing the Basics of Image Packaging System (IPS) on Oracle Solaris 11."
Run the following command to install the
We can check on the status of the
Note: A kernel zone needs a boot disk on which it is installed; by using the command shown in Listing 7, we can see that this boot disk has been created for us:
Listing 7
You can see in Listing 7 that the
Listing 8
Note: The
Because no system configuration files are available, the System Configuration Tool starts up, as shown in Figure 2.
![]()
Figure 2. Initial screen of the System Configuration Tool
Press F2 to continue.

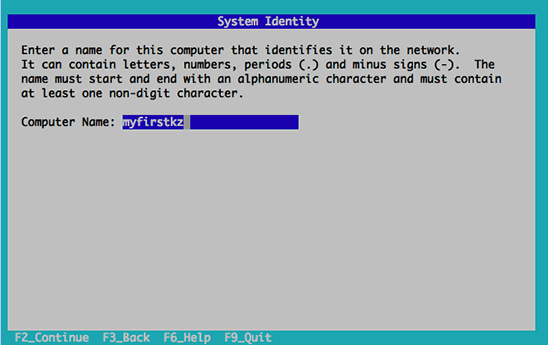

In the System Identity screen (shown in Figure 3), enter
press F2 to continue.
![]()
Figure 3. System Identity screen
In the Network screen (shown in Figure 4), Enter the network settings appropriate for your network and then press F2. Here we will select Automatically.
![]()
Figure 4. Network screen
In the Time Zone: Regions screen (shown in Figure 5), choose the time zone region appropriate for your location. In this example, we chose Europe. Then press F2.
![]()
Figure 5. Time Zone: Regions screen

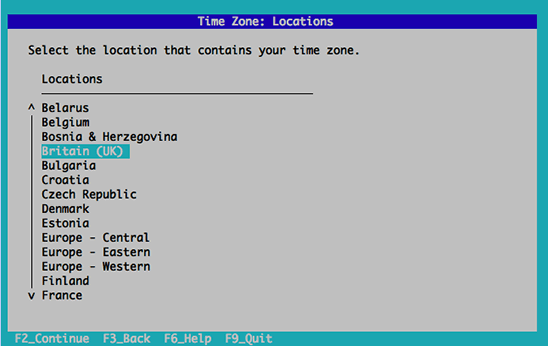

In the Time Zone: Locations screen (shown in Figure 6), choose the time zone location appropriate for your location, and then press F2.
![]()
Figure 6. Time Zone: Locations screen

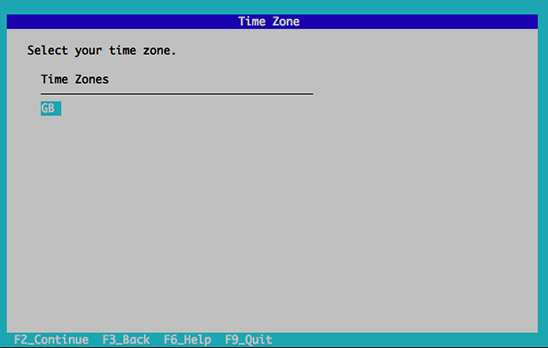

In the Time Zone screen (shown in Figure 7), choose the time zone appropriate for your location, and then press F2.
![]()
Figure 7. Time Zone screen

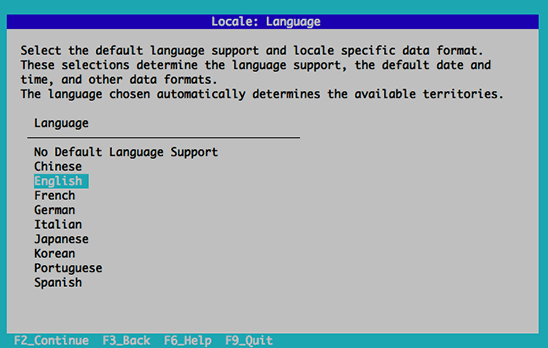

In the Locale: Language screen (shown in Figure 8), choose the language appropriate for your location, and then press F2.
![]()
Figure 8. Locale: Language screen

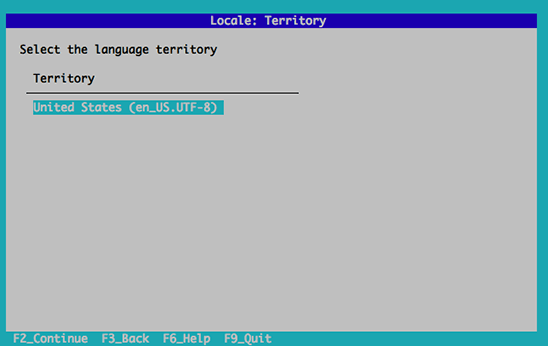

In the Locale: Territory screen (shown in Figure 9), choose the language territory appropriate for your location, and then press F2.
![]()
Figure 9. Locale: Territory screen
In the Date and Time screen (shown in Figure 10), set the date and time, and then press F2.
![]()
Figure 10. Date and Time screen
In the Keyboard screen (shown in Figure 11), select the appropriate keyboard, and then press F2.
![]()
Figure 11. Keyboard screen

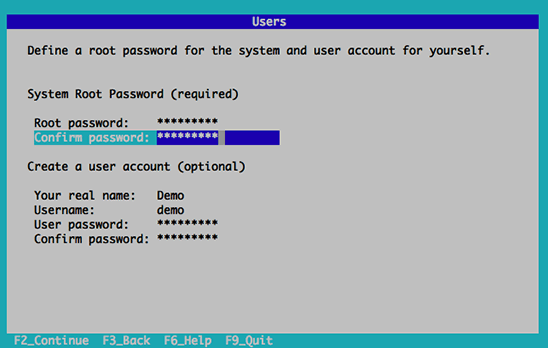

In the Users screen (shown in Figure 12), choose a root password and enter information for a user account. Then press F2.
![]()
Figure 12. Users screen
In the Support — Registration screen (shown in Figure 13), enter your My Oracle Support credentials. Then press F2.
![]()
Figure 13. Support — Registration screen

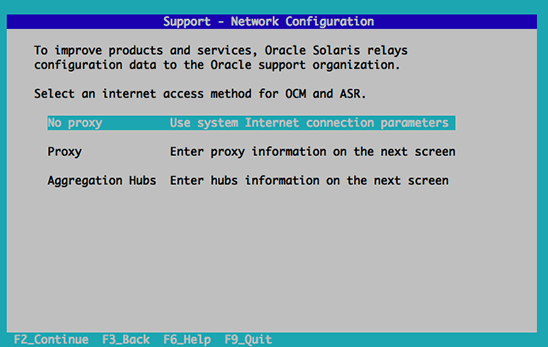

In the Support — Network Configuration screen (shown in Figure 14), choose how you will send configuration data to Oracle. Then press F2.
![]()
Figure 14. Support — Network Configuration screen

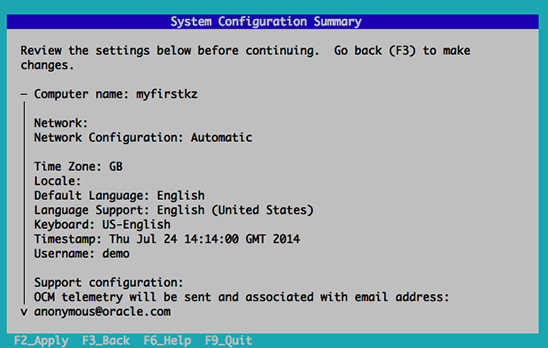

In the System Configuration Summary screen (shown in Figure 15), verify that the configuration you have chosen is correct and apply the settings by pressing F2.
![]()
Figure 15. System Configuration Summary screen
The zone will continue booting, and soon you will see the console login:
The zone is now ready to be logged in to. For this example, we will now exit the console using the "
You can check that your zone is booted and running using the
As promised, a VNIC was automatically created for us when the zone was booted. We can verify this by using the
Listing 9
In Listing 9, we can see the VNIC is listed as
Listing 10
Note: In Listing 10, we did not use the
Let's look at the output shown in Listing 10 to see what we have:
Note: From within
You have now verified that
Starting with Oracle Solaris 11.2, kernel zones support both backwards and forwards compatibility. What that means in practice is that you can not only have a kernel zone running Oracle Solaris 11.2 on a host running a later Oracle Solaris version, say Oracle Solaris 11.3 (when it is available), but you can also have a kernel zone running a later Oracle Solaris version, say Oracle Solaris 11.3, on a host running Oracle Solaris 11.2. Figure 16 illustrates this capability.
![]()

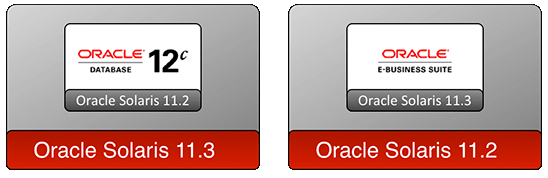

Figure 16. Example of forward and backward compatibility of kernel zones
First, let's use the command shown in Listing 11 to look at what boot environments we have from the host global zone:
Listing 11
In Listing 11, we could see a list of native zone boot environments, if there were any. However, we will not see kernel zone boot environments listed, because a kernel zone has its own boot disk.
Let's check what our current publisher is and point the kernel zone to a publisher that has a newer kernel. We start by logging in to
Listing 12
Note that in this example, we will use an internally created repository. You will be able to reproduce this for yourself as later releases of Oracle Solaris become available. In Listing 12, we can see that we are running Oracle Solaris 11.2, and we have set our publisher to point to the
Before we update, let's look at what the kernel zone sees as its boot environment:
Now, let's update our kernel zone, as shown in Listing 13:
Listing 13
In the command shown in Listing 13, we use the
Listing 14
In Listing 14, we can see from the
Finally, let's reboot the zone.
We are now back in the host global zone, and we can use
Listing 15
As shown in Listing 15, our kernel zone has already rebooted and is running again.
Let's log back in, as shown in Listing 16, and check what kernel version we are running:
Listing 16
Listing 16 shows we are running a completely different kernel: the hypothetical "Oracle Solaris Next."
Let's run the command shown in Listing 17 to take a final look at the boot environments before we leave this kernel zone:
Listing 17
In Listing 17, we can see that we are running in the new boot environment.
We will also use this opportunity to explore how to allocate some dedicated CPU resources to the kernel zone, as well as how to add some extra memory and increase the size of its boot disk.
Let's start by checking how many CPU resources we have:
Now, let's create a new kernel zone called
We can check that the zone creation and resource configuration worked by using the
You can set a kernel zone to have either virtual CPUs or dedicated CPUs. The difference between the two types is basically about sharing.
Listing 18
In Listing 18, you can see that this time, the image we used is using the text installer.
Once we have answered the usual installation questions, we can log in to our zone, as shown in
Listing 19:
Listing 19
In Listing 19, we can see the four dedicated CPUs we assigned and we can see that we are running a release different than that of the host global zone.
Before we move on, let's shut down our two kernel zones:
In this example, we will use a native zone that has already been created. If you are not sure how to create a native zone, see "How to Get Started Creating Oracle Solaris Zones in Oracle Solaris 11."
Let's start by having a look at the native zone we are going to convert, as shown in Listing 20:
Listing 20
In Listing 20, we can see our native-zone is already up and running, and we have logged in and created a file called
Note: One of the big advantages of using a Unified Archive to capture a zone is that you can do the capture on a running zone, which means you can avoid outages to end users. In this case, because we want to convert our native zone to a kernel zone (rather than clone the native zone), we shut down the native zone.
Now let's create a Unified Archive of our native zone:
Once we have created the archive, we can examine it to see what it contains:
Next, let's configure a new kernel zone and when we are ready to install it, we will pass in the archive, as shown in
Listing 21:
Listing 21
As we can see in Listing 21, the install process completed successfully and we have an installed kernel zone.
Let's boot up our newly converted zone and have a look at it, as shown in Listing 22:
Listing 22
In Listing 22, we can see that the contents of our native zone have been preserved.
With the inclusion of the Kernel Zones feature, Oracle Solaris 11.2 provides a flexible, cost-efficient, cloud-ready solution that is perfect for the data center.
This article describes how to create a kernel zone in Oracle Solaris 11.2, as well as how to configure the kernel zone to your requirements, install it, and boot it.
You will learn about the two main methods of installing a kernel zone: direct installation and installation via an ISO image. In addition, you will learn about a third installation method that enables you to convert a native zone to a kernel zone. You will learn how to update a kernel zone so that it uses a different Oracle Solaris release than the release that is running in the host machine's kernel.
The examples in this article will leave you familiar with the basic procedures for installing, configuring, and managing kernel zones in Oracle Solaris 11.2.
Note: This article demonstrates how to update a kernel zone from Oracle Solaris 11.2 to a later release through examples that mention "Oracle Solaris 11.3" and "Oracle Solaris Next." These examples are purely hypothetical and are for demonstration purposes only; no release later than Oracle Solaris 11.2 is currently available.
About Oracle Solaris Zones and Kernel Zones
Oracle Solaris Zones let you isolate one application from others on the same operating system (OS), allowing you to create a user-, security-, and resource-controlled environment suitable to that particular application. Each Oracle Solaris Zone can contain a complete environment and also allows you to control different resources such as CPU, memory, networking, and storage.The system administrator who owns the host system can choose to closely manage all the Oracle Solaris Zones on the system. Alternatively, the system administrator can assign rights to other system administrators for specific Oracle Solaris Zones. This flexibility lets you tailor an entire computing environment to the needs of a particular application.
Kernel zones, the newest type of Oracle Solaris Zones, provide all the flexibility, scalability, and efficiency of Oracle Solaris Zones while adding the capability to have zones with independent kernels. This capability is highly useful when you are trying to coordinate the updating of multiple zone environments belonging to different owners.
With kernel zones, the updates can be done at the level of an individual kernel zone at a time that is convenient for each owner. In addition, applications that have specific version requirements can run side by side on the same system and benefit from the high consolidation ratios that Oracle Solaris Zones provide.
Benefits of the Each Installation Method
In this article, we will create three kernel zones using different methods:- The first method will show how quickly and easily you can create a new kernel zone using a direct installation—that is, an installation based on the OS running on the host system. This is an extremely useful method for getting additional kernel zone environments up and running quickly in response to a new application or user demands.
- Using the second method, you will learn how to create a kernel zone from an ISO image. This is useful when it is desirable to deploy a specific kernel version to support an application or environment.
- Using the final method, you will learn how to convert a native zone to a kernel zone. This is useful when you want to update an application or service to run on a later kernel version without affecting the other services running on the system.
Figure 1. Illustration of the three methods for creating kernel zones
Prerequisites
There are a couple of tasks that need to be completed before we create our first kernel zone. We need to check that the hardware is capable of running kernel zones, and we also need to provide a hint to the system about application memory usage.Checking the Hardware Capabilities
Kernel zones will run only on certain types of hardware, as follows:- Intel CPUs with CPU virtualization (VT-x) enabled in BIOS and with support for Extended Page Tables (EPT), such as Nehalem or newer CPUs
- AMD CPUs with CPU virtualization (AMD-v) enabled in BIOS and with support for Nested Page Tables (NPT), such as Barcelona or newer CPUs
- sun4v CPUs with a "wide" partition register, for example, Oracle's SPARC T4 or SPARC T5 processors running a supported firmware version and Oracle's SPARC M5, SPARC M6, or newer processors
virtinfo command, as shown in Listing 1:root@global:~# virtinfo
NAME CLASS
non-global-zone supported
kernel-zone supported
Listing 1
You can see from the output in Listing 1 that kernel zones are supported.
There are some other hardware prerequisites; for a full list, see the Oracle Solaris Kernel Zones documentation.
Providing Information About Application Memory Usage
When using kernel zones, is it necessary to provide a hint to the system about application memory usage. This information is used to limit the growth of the ZFS Adaptive Replacement Cache (ARC) so that more memory stays available for applications and, in this case, for the kernel zones themselves.Providing this hint is achieved by setting the
user_reserve_hint_pct parameter. A script is provided for doing this, and the current recommendation is to set the value to 80.root@global:~# ./set_user_reserve.sh -f 80
Adjusting user_reserve_hint_pct from 0 to 80
Adjustment of user_reserve_hint_pct to 80 successful.
You can find this script and more information by visiting the My Oracle Support website and then accessing Doc ID 1663862.1.
Creating Your First Kernel Zone Using the Direct Installation Method
For a full discussion on all the steps involved in creating a kernel zone and configuring all its attributes, please see Creating and Using Oracle Solaris Kernel Zones. This article will concentrate on a subset of the steps to demonstrate how to quickly get a kernel zone instance up and running.Prerequisites
First, check the status of the ZFS file system and the network, as shown in Listing 2:demo@global:~$ zfs list | grep zones
rpool/VARSHARE/zones 16.5G 348G 32K /system/zones
demo@global:~$ dladm show-link
LINK CLASS MTU STATE OVER
net1 phys 1500 unknown --
net2 phys 1500 unknown --
net0 phys 1500 up --
net3 phys 1500 unknown --
Listing 2
Note: In Listing 2, there are no ZFS datasets associated with any specific zones. We will see later how these are created for you as you install zones. Also note that there are no virtual network interface card (VNIC) devices.
Let's also check the Oracle Solaris version of the global zone, as shown in Listing 3, because we will use this information later:
root@global:~# uname -a
SunOS global 5.11 11.2 i86pc i386 i86pc
Listing 3
In Listing 3, we can see the version is Oracle Solaris 11.2.
Note: In this article, we will use
uname as a quick way of showing the kernel version of the system. However, that is not the recommended way to check the system version. The recommended way is to query the entire package, as shown in Listing 4, which also indicates that the version is OracleSolaris 11.2. (See "Understanding Oracle Solaris 11 Package Versioning" for an explanation about how to decipher the output when you query the entire package.)
demo@dcsw-79-168:~$ pkg list entire
NAME (PUBLISHER) VERSION IFO
entire 0.5.11-0.175.2.0.0.41.0 i—
Listing 4
We can also see that the system has a publisher set up:
root@global:~# pkg publisher
PUBLISHER TYPE STATUS P LOCATION
solaris origin online F http://ipkg.us.oracle.com/solaris11/dev/
Step 1: Create the Kernel Zone
Let's start by creating our first kernel zone using the command line, as shown in Listing 5:root@global:~# zonecfg -z myfirstkz create -t SYSsolaris-kz
Listing 5
In Listing 5, note that all we need to supply is the zone name (
myfirstkz) and the kernel zone brand (SYSsolaris-kz).By default, all Oracle Solaris Zones are configured to have an automatic VNIC called
anet, which gives us a network device automatically. We cannot see this network device, but it is automatically created upon booting the zone (and also automatically destroyed upon shutdown). We can check this by using the dladm command:root@global:~# dladm show-link
LINK CLASS MTU STATE OVER
net1 phys 1500 unknown --
net2 phys 1500 unknown --
net0 phys 1500 up --
net3 phys 1500 unknown --
We can also see that, as of yet, no storage has been created for our kernel zone:
root@global:~# zfs list | grep zones
rpool/VARSHARE/zones 16.5G 348G 32K /system/zones
We can verify that the kernel zone is now in the configured state by using the
zoneadm command:root@global:~# zoneadm list -cv
ID NAME STATUS PATH BRAND IP
0 global running / solaris shared
- myfirstkz configured - solaris-kz excl
Let's take a look at the default settings for the kernel zone that we have created. We can do this by passing the
info option to the zonecfg command, as shown in Listing 6:root@global~# zonecfg -z myfirstkz info
zonename: myfirstkz
brand: solaris-kz
autoboot: false
autoshutdown: shutdown
bootargs:
pool:
scheduling-class:
hostid: 0x3888f5a3
tenant:
anet:
lower-link: auto
allowed-address not specified
configure-allowed-address: true
defrouter not specified
allowed-dhcp-cids not specified
link-protection: mac-nospoof
mac-address: auto
mac-prefix not specified
mac-slot not specified
vlan-id not specified
priority not specified
rxrings not specified
txrings not specified
mtu not specified
maxbw not specified
rxfanout not specified
vsi-typeid not specified
vsi-vers not specified
vsi-mgrid not specified
etsbw-lcl not specified
cos not specified
evs not specified
vport not specified
id: 0
device:
match not specified
storage: dev:/dev/zvol/dsk/rpool/VARSHARE/zones/myfirstkz/disk0
id: 0
bootpri: 0
capped-memory:
physical: 2G
Listing 6
From the output in Listing 6, we can see that the zone is called
myfirstkz, that it is a kernel zone (brand: solaris-kz), that we have a boot disk (and its location is dev:/dev/zvol/dsk/rpool/VARSHARE/zones/myfirstkz/disk0) and, finally, that we have 2 GB of physical memory assigned to this kernel zone.What we don't see is the amount of CPU resources we have for this kernel zone. When nothing is specified, the default is to have one virtual CPU assigned. We'll see how to verify this later when we boot the kernel zone.
Step 2: Install the Kernel Zone
Now that the kernel zone has been created, we need to install it.For this first installation, we are going to use what is called a direct installation. With a direct installation, the installer runs on the host. It will create and format the kernel zone's boot disk and install Oracle Solaris packages on that disk, using the host's package publishers. Since the installer is running on the host, the installer can install only the exact version of Oracle Solaris that it is actively running on the host.
This installation method makes use of the Oracle Solaris 11 Image Packaging System. You will need to make sure you have access to your Image Packaging System repository; in this case, we have network access to our repository. For more details on the Image Packaging System, see "Introducing the Basics of Image Packaging System (IPS) on Oracle Solaris 11."
Run the following command to install the
myfirstkz kernel zone:root@global:~# zoneadm -z myfirstkz install
Progress being logged to /var/log/zones/zoneadm.20140724T124406Z.myfirstkz.install
pkg cache: Using /var/pkg/publisher.
Install Log: /system/volatile/install.7395/install_log
AI Manifest: /tmp/zoneadm6814.Voa43n/devel-ai-manifest.xml
SC Profile: /usr/share/auto_install/sc_profiles/enable_sci.xml
Installation: Starting ...
Creating IPS image
Installing packages from:
solaris
origin: http://ipkg.us.oracle.com/solaris11/dev/
The following licenses have been accepted and not displayed.
Please review the licenses for the following packages post-install:
consolidation/osnet/osnet-incorporation
Package licenses may be viewed using the command:
pkg info --license
DOWNLOAD PKGS FILES XFER (MB) SPEED
Completed 483/483 64276/64276 543.8/543.8 11.6M/s
PHASE ITEMS
Installing new actions 87529/87529
Updating package state database Done
Updating package cache 0/0
Updating image state Done
Creating fast lookup database Done
Installation: Succeeded
Done: Installation completed in 538.018 seconds.
We can check on the status of the
myfirstkz kernel zone using the zoneadm command:root@global:~# zoneadm list -cv
ID NAME STATUS PATH BRAND IP
0 global running / solaris shared
- myfirstkz installed - solaris-kz excl
Note: A kernel zone needs a boot disk on which it is installed; by using the command shown in Listing 7, we can see that this boot disk has been created for us:
root@global:~# zfs list | grep zones
rpool/VARSHARE/zones 16.5G 348G 32K /system/zones
rpool/VARSHARE/zones/myfirstkz 16.5G 348G 31K /system/zones/myfirstkz
rpool/VARSHARE/zones/myfirstkz/disk0 16.5G 361G 2.92G -
Listing 7
You can see in Listing 7 that the
/myfirstkz/disk0 dataset has been created automatically for you.Step 3: Boot the Kernel Zone and Complete the System Configuration
The final step in gettingmyfirstkz up and running is to boot it and set up the system configuration. We will boot the zone and then access its console using one command at the command line, as shown in Listing 8, so the majority of the console output can be seen:root@global:~# zoneadm -z myfirstkz boot; zlogin -C myfirstkz
[Connected to zone 'myfirstkz' console]
Boot device: disk0 File and args:
reading module /platform/i86pc/amd64/boot_archive...done.
reading kernel file /platform/i86pc/kernel/amd64/unix...done.
SunOS Release 5.11 Version 11.2 64-bit
Copyright (c) 1983, 2014, Oracle and/or its affiliates. All rights reserved.
Loading smf(5) service descriptions: 183/183
Configuring devices.
Listing 8
Note: The
-C option to zlogin shown in Listing 8 lets us access the zone console; the command will bring us into the zone and let us work within the zone.Because no system configuration files are available, the System Configuration Tool starts up, as shown in Figure 2.
Press F2 to continue.
In the System Identity screen (shown in Figure 3), enter
myfirstkz as the computer name, and thenpress F2 to continue.
In the Network screen (shown in Figure 4), Enter the network settings appropriate for your network and then press F2. Here we will select Automatically.
In the Time Zone: Regions screen (shown in Figure 5), choose the time zone region appropriate for your location. In this example, we chose Europe. Then press F2.
In the Time Zone: Locations screen (shown in Figure 6), choose the time zone location appropriate for your location, and then press F2.
In the Time Zone screen (shown in Figure 7), choose the time zone appropriate for your location, and then press F2.
In the Locale: Language screen (shown in Figure 8), choose the language appropriate for your location, and then press F2.
In the Locale: Territory screen (shown in Figure 9), choose the language territory appropriate for your location, and then press F2.
In the Date and Time screen (shown in Figure 10), set the date and time, and then press F2.
In the Keyboard screen (shown in Figure 11), select the appropriate keyboard, and then press F2.
In the Users screen (shown in Figure 12), choose a root password and enter information for a user account. Then press F2.
In the Support — Registration screen (shown in Figure 13), enter your My Oracle Support credentials. Then press F2.
In the Support — Network Configuration screen (shown in Figure 14), choose how you will send configuration data to Oracle. Then press F2.
In the System Configuration Summary screen (shown in Figure 15), verify that the configuration you have chosen is correct and apply the settings by pressing F2.
The zone will continue booting, and soon you will see the console login:
SC profile successfully generated as:
/etc/svc/profile/sysconfig/sysconfig-20140724-130314/sc_profile.xml
Exiting System Configuration Tool. Log is available at:
/system/volatile/sysconfig/sysconfig.log.287
Hostname: myfirstkz
myfirstkz console login:
The zone is now ready to be logged in to. For this example, we will now exit the console using the "
~." escape sequence.You can check that your zone is booted and running using the
zoneadm command:root@global:~# zoneadm list -cv
ID NAME STATUS PATH BRAND IP
0 global running / solaris shared
2 myfirstkz running - solaris-kz excl
As promised, a VNIC was automatically created for us when the zone was booted. We can verify this by using the
dladm command shown in Listing 9:root@global:~# dladm show-link
LINK CLASS MTU STATE OVER
net1 phys 1500 unknown --
net2 phys 1500 unknown --
net0 phys 1500 up --
net3 phys 1500 unknown --
myfirstkz/net0 vnic 1500 up net0
Listing 9
In Listing 9, we can see the VNIC is listed as
myfirstkz/net0.Step 4: Log In to Your Kernel Zone
The last step is to log in to your zone and have a look. You can do this from the global zone using thezlogin command, as shown in Listing 10:root@global:~# zlogin myfirstkz
[Connected to zone 'myfirstkz' pts/1]
Oracle Corporation SunOS 5.11 11.2 June 2014
root@myfirstkz:~# uname -a
SunOS myfirstkz 5.11 11.2 i86pc i386 i86pc
root@myfirstkz:~# ipadm show-addr
ADDROBJ TYPE STATE ADDR
lo0/v4 static ok 127.0.0.1/8
net0/v4 dhcp ok 10.134.79.210/24
lo0/v6 static ok ::1/128
net0/v6 addrconf ok fe80::8:20ff:fe47:ca30/10
root@myfirstkz:~# dladm show-link
LINK CLASS MTU STATE OVER
net0 phys 1500 up --
root@myfirstkz:~# zfs list
NAME USED AVAIL REFER MOUNTPOINT
rpool 4.65G 10.7G 32.5K /rpool
rpool/ROOT 2.58G 10.7G 31K legacy
rpool/ROOT/solaris-5 2.58G 10.7G 2.08G /
rpool/ROOT/solaris-5/var 510M 10.7G 508M /var
rpool/VARSHARE 2.52M 10.7G 2.43M /var/share
rpool/VARSHARE/pkg 63K 10.7G 32K /var/share/pkg
rpool/VARSHARE/pkg/repositories 31K 10.7G 31K /var/share/pkg/repositories
rpool/VARSHARE/zones 31K 10.7G 31K /system/zones
rpool/dump 1.03G 10.8G 1.00G -
rpool/export 96.5K 10.7G 32K /export
rpool/export/home 64.5K 10.7G 32K /export/home
rpool/export/home/demo 32.5K 10.7G 32.5K /export/home/demo
rpool/swap 1.03G 10.8G 1.00G -
root@myfirstkz:~# zonename
global
root@myfirstkz:~# exit
logout
[Connection to zone 'myfirstkz' pts/1 closed]
Listing 10
Note: In Listing 10, we did not use the
-C option for the zlogin command, which means we are not accessing the zone via its console. This is why we can simply exit the shell at the end to leave the zone.Let's look at the output shown in Listing 10 to see what we have:
- The output of the
unamecommand shows that we are running on Oracle Solaris 11.2—the same kernel version used in the global zone in which ourmyfirstkzkernel zone is running. - The output of the
ipadmcommand shows the IP address formyfirstkz. There are four entries: two loopback devices (IPv4 and IPv6), our IPv4net0device with an IP address of10.134.79.210and, finally, an IPv6net0device. - The output of the
dladmcommand shows our automatically creatednet0VNIC. - The output of the
zfs listcommand shows our ZFS dataset. - Finally, the output of the
zonenamecommand shows that our zone name isglobal. With native zones, this would be the actual zone name. However, a kernel zone actually runs a full kernel instance, so users running inside the kernel zone have their own instance of a global zone.
virtinfo command:root@global:~# zlogin myfirstkz
[Connected to zone 'myfirstkz' pts/1]
Oracle Corporation SunOS 5.11 11.2 June 2014
root@myfirstkz:~# virtinfo -c current get zonename
NAME CLASS PROPERTY VALUE
kernel-zone current zonename myfirstkz
root@myfirstkz:~# exit
logout
Note: From within
myfirstkz, we cannot see any information about the global zone; we can see only the attributes of our own zone.You have now verified that
myfirstkz is up and running. You can give the login information to your users to allow them to complete the setup of their team's kernel zone as if it were a single system.Updating a Kernel Zone to a Later Oracle Solaris Release
One of the main features of kernel zones is the ability to run your kernel zone with a different kernel version from that of the host global zone.Starting with Oracle Solaris 11.2, kernel zones support both backwards and forwards compatibility. What that means in practice is that you can not only have a kernel zone running Oracle Solaris 11.2 on a host running a later Oracle Solaris version, say Oracle Solaris 11.3 (when it is available), but you can also have a kernel zone running a later Oracle Solaris version, say Oracle Solaris 11.3, on a host running Oracle Solaris 11.2. Figure 16 illustrates this capability.
Updating myfirstkz to a Later Oracle Solaris Release
Let's update our kernel zone to use a later Oracle Solaris release—a hypothetical "Oracle Solaris Next" release—rather than the release running on the host (Oracle Solaris 11.2).First, let's use the command shown in Listing 11 to look at what boot environments we have from the host global zone:
root@global:~# beadm list
BE Active Mountpoint Space Policy Created
-- ------ ---------- ----- ------ -------
solaris - - 44.67M static 2012-01-26 18:59
solaris-1 - - 47.78M static 2014-06-25 08:12
solaris-2 - - 46.71M static 2014-06-25 08:40
solaris-3 - - 1.03G static 2014-06-25 23:30
solaris-3-backup-1 - - 221.0K static 2014-07-10 14:23
solaris-4 NR / 52.77G static 2014-07-20 18:41
solaris-backup-1 - - 144.0K static 2012-01-26 19:28
Listing 11
In Listing 11, we could see a list of native zone boot environments, if there were any. However, we will not see kernel zone boot environments listed, because a kernel zone has its own boot disk.
Let's check what our current publisher is and point the kernel zone to a publisher that has a newer kernel. We start by logging in to
myfirstkz, as shown in Listing 12:root@global:~# zlogin myfirstkz
[Connected to zone 'myfirstkz' pts/2]
Oracle Corporation SunOS 5.11 11.2 June 2014
root@myfirstkz:~# pkg publisher
PUBLISHER TYPE STATUS P LOCATION
solaris origin online F http://ipkg.us.oracle.com/solaris11/dev/
root@myfirstkz:~# pkg set-publisher -G '*' -g http://ipkg.us.oracle.com/solaris-n/dev/ solaris
root@myfirstkz:~# pkg publisher
PUBLISHER TYPE STATUS P LOCATION
solaris origin online F http://ipkg.us.oracle.com/solaris-n/dev/
Listing 12
Note that in this example, we will use an internally created repository. You will be able to reproduce this for yourself as later releases of Oracle Solaris become available. In Listing 12, we can see that we are running Oracle Solaris 11.2, and we have set our publisher to point to the
dev repository.Before we update, let's look at what the kernel zone sees as its boot environment:
root@myfirstkz:~# beadm list
BE Active Mountpoint Space Policy Created
-- ------ ---------- ----- ------ -------
solaris-5 NR / 7.91M static 2014-07-24 13:44
Now, let's update our kernel zone, as shown in Listing 13:
root@myfirstkz:~# pkg update --accept
------------------------------------------------------------
Package: pkg://solaris/consolidation/osnet/osnet-incorporation@5.12,5.12-
5.12.0.0.0.52.0:20140714T022826Z
License: lic_OTN
You acknowledge that your use of this Oracle Solaris software product
is subject to (i) the license terms that you accepted when you obtained
the right to use Oracle Solaris software; or (ii) the license terms that
you agreed to when you placed your Oracle Solaris software order with
Oracle; or (iii) the Oracle Solaris software license terms included with
the hardware that you acquired from Oracle; or, if (i), (ii) or (iii)
are not applicable, then, (iv) the OTN License Agreement for Oracle
Solaris (which you acknowledge you have read and agree to) available at
http://www.oracle.com/technetwork/licenses/solaris-cluster-express-license-
167852.html.
Note: Software downloaded for trial use or downloaded as replacement
media may not be used to update any unsupported software.
Packages to remove: 37
Packages to install: 57
Packages to update: 432
Mediators to change: 4
Create boot environment: Yes
Create backup boot environment: No
DOWNLOAD PKGS FILES XFER (MB) SPEED
Completed 526/526 23157/23157 363.4/363.4 16.7M/s
PHASE ITEMS
Removing old actions 6580/6580
Installing new actions 9594/9594
Updating modified actions 24807/24807
Updating package state database Done
Updating package cache 469/469
Updating image state Done
Creating fast lookup database Done
Updating package cache 1/1
A clone of solaris-5 exists and has been updated and activated.
On the next boot the Boot Environment solaris-6 will be
mounted on '/'. Reboot when ready to switch to this updated BE.
Updating package cache 1/1
---------------------------------------------------------------------------
NOTE: Please review release notes posted at:
http://www.oracle.com/pls/topic/lookup?ctx=solaris11&id=SERNS
---------------------------------------------------------------------------
Listing 13
In the command shown in Listing 13, we use the
--accept option to automatically accept any licenses. We can see in the output that a boot environment has been created. Let's look at what that is, as shown in Listing 14:root@myfirstkz:~# beadm list
BE Active Mountpoint Space Policy Created
-- ------ ---------- ----- ------ -------
solaris-5 N / 7.91M static 2014-07-24 13:44
solaris-6 R - 7.39G static 2014-07-24 17:04
Listing 14
In Listing 14, we can see from the
R next to the solaris-6 boot environment that after a reboot, we will select this new environment.Finally, let's reboot the zone.
root@myfirstkz:~# reboot
[Connection to zone 'myfirstkz' pts/2 closed]
root@global:~#
We are now back in the host global zone, and we can use
zoneadm to check the status of our kernel zone, as shown in Listing 15:root@global:~# zoneadm list -cv
ID NAME STATUS PATH BRAND IP
0 global running / solaris shared
3 myfirstkz running - solaris-kz excl
Listing 15
As shown in Listing 15, our kernel zone has already rebooted and is running again.
Let's log back in, as shown in Listing 16, and check what kernel version we are running:
root@global:~# zlogin myfirstkz
[Connected to zone 'myfirstkz' pts/2]
Oracle Corporation SunOS 5.n sn_52 June 2014
Listing 16
Listing 16 shows we are running a completely different kernel: the hypothetical "Oracle Solaris Next."
Let's run the command shown in Listing 17 to take a final look at the boot environments before we leave this kernel zone:
root@myfirstkz:~# beadm list
BE Active Mountpoint Space Policy Created
-- ------ ---------- ----- ------ -------
solaris-5 - - 12.35M static 2014-07-24 13:44
solaris-6 NR / 7.50G static 2014-07-24 17:04
root@myfirstkz:~# exit
logout
[Connection to zone 'myfirstkz' pts/2 closed]
Listing 17
In Listing 17, we can see that we are running in the new boot environment.
Installing a Kernel Zone from an ISO Image
Sometimes you might not want to do a direct installation with a kernel zone; you might want to install from an ISO image instead. This is supported for kernel zones, and this section will show how to do that.We will also use this opportunity to explore how to allocate some dedicated CPU resources to the kernel zone, as well as how to add some extra memory and increase the size of its boot disk.
Step 1: Configure Dedicated CPU Resources and More Memory
Let's create a new kernel zone similar to what we did before, but this time we will use thezonecfg command to add some dedicated CPU resources.Let's start by checking how many CPU resources we have:
root@global:~# psrinfo -t
socket: 0
core: 0
cpus: 0,8
core: 1
cpus: 1,9
core: 2
cpus: 2,10
core: 3
cpus: 3,11
socket: 1
core: 8
cpus: 4,12
core: 9
cpus: 5,13
core: 10
cpus: 6,14
core: 11
cpus: 7,15
Now, let's create a new kernel zone called
iso-kz and then add four CPU's worth of dedicated CPU resources to it:root@global:~# zonecfg -z iso-kz create -t SYSsolaris-kz
root@global:~# zonecfg -z iso-kz
zonecfg:iso-kz> add dedicated-cpu
zonecfg:iso-kz:dedicated-cpu> set ncpus=4
zonecfg:iso-kz:dedicated-cpu> end
zonecfg:iso-kz> verify
zonecfg:iso-kz> commit
zonecfg:iso-kz> exit
We can check that the zone creation and resource configuration worked by using the
zonecfg command:root@global:~# zonecfg -z iso-kz info dedicated-cpu
dedicated-cpu:
ncpus: 4
cpus not specified
cores not specified
sockets not specified
You can set a kernel zone to have either virtual CPUs or dedicated CPUs. The difference between the two types is basically about sharing.
- With a virtual CPU, the CPU resource is shared with the rest of the system or other zones and it can be leveraged in cases where the kernel zone is not busy.
- With dedicated a CPU, the CPU resource is exclusive to the kernel zone and will never be used by anything other than that specific kernel zone.
zonecfg command to add some extra memory to the kernel zone:root@global:~# zonecfg -z iso-kz
zonecfg:iso-kz> select capped-memory
zonecfg:iso-kz:capped-memory> set physical=3g
zonecfg:iso-kz:capped-memory> end
zonecfg:iso-kz> verify
zonecfg:iso-kz> commit
zonecfg:iso-kz> exit
root@global:~# zonecfg -z iso-kz info capped-memory
capped-memory:
physical: 3G
Step 2: Install the Kernel Zone with a Bigger Disk
It's now time to install our zone. We will use a hypothetical Oracle Solaris 11.3 ISO image to do this and we will also increase the size of the install disk. The default is a 16 GB disk, so let's increase that to 24 GB. Listing 18 shows how you do this at installation time:root@global:~# zoneadm -z iso-kz install -b /root/sol-11_3-42-text-x86.iso -x install-size=24g
Listing 18
In Listing 18, you can see that this time, the image we used is using the text installer.
Once we have answered the usual installation questions, we can log in to our zone, as shown in
Listing 19:
root@global:~# zoneadm list -cv
ID NAME STATUS PATH BRAND IP
0 global running / solaris shared
3 myfirstkz running - solaris-kz excl
5 iso-kz running - solaris-kz excl
root@global:~# zlogin iso-kz
[Connected to zone 'iso-kz' pts/2]
Oracle Corporation SunOS 5.11 11.3 June 2014
root@:~#
root@solarisiso-kz:~# psrinfo -t
socket: 0
core: 0
cpu: 0
core: 1
cpu: 1
core: 2
cpu: 2
core: 3
cpu: 3
root@:~# exit
logout
[Connection to zone 'iso-kz' pts/2 closed]
Listing 19
In Listing 19, we can see the four dedicated CPUs we assigned and we can see that we are running a release different than that of the host global zone.
Before we move on, let's shut down our two kernel zones:
root@global:~# zoneadm -z myfirstkz shutdown
root@global:~# zoneadm -z iso-kz shutdown
Converting a Native Zone to a Kernel Zone
The final operation to try is converting a native zone to a kernel zone, which is made especially easy through the use of Oracle Solaris Unified Archives.In this example, we will use a native zone that has already been created. If you are not sure how to create a native zone, see "How to Get Started Creating Oracle Solaris Zones in Oracle Solaris 11."
Let's start by having a look at the native zone we are going to convert, as shown in Listing 20:
root@global:~# zoneadm list -cv
ID NAME STATUS PATH BRAND IP
0 global running / solaris shared
6 native-zone running /system/zones/native-zone solaris excl
- myfirstkz installed - solaris-kz excl
- iso-kz installed - solaris-kz excl
root@global:~# zlogin native-zone
[Connected to zone 'native-zone' pts/2]
Oracle Corporation SunOS 5.11 11.2 June 2014
root@native-zone:~# touch my_special_files
root@native-zone:~# zonename
native-zone
root@native-zone:~# exit
logout
[Connection to zone 'native-zone' pts/2 closed]
root@global:~# zoneadm list -cv
ID NAME STATUS PATH BRAND IP
0 global running / solaris shared
- myfirstkz installed - solaris-kz excl
- iso-kz installed - solaris-kz excl
- native-zone installed /system/zones/native-zone solaris excl
Listing 20
In Listing 20, we can see our native-zone is already up and running, and we have logged in and created a file called
my_special_files. This example is just to reflect any configuration that we might have done when taking a zone from a real environment. Finally, we checked the zone name, logged out, and shut down the native zone.Note: One of the big advantages of using a Unified Archive to capture a zone is that you can do the capture on a running zone, which means you can avoid outages to end users. In this case, because we want to convert our native zone to a kernel zone (rather than clone the native zone), we shut down the native zone.
Now let's create a Unified Archive of our native zone:
root@global:~# archiveadm create -z native-zone ./native-zone-archive.uar
Initializing Unified Archive creation resources...
Unified Archive initialized: /root/native-zone-archive.uar
Logging to: /system/volatile/archive_log.26165
Executing dataset discovery...
Dataset discovery complete
Preparing archive system image...
Beginning archive stream creation...
Archive stream creation complete
Beginning final archive assembly...
Archive creation complete
Once we have created the archive, we can examine it to see what it contains:
root@global:~# ls -l
total 5602777
-rw-r--r-- 1 root root 901992448 Jul 1 06:18 0.175.2_ai_i386.iso
-rw-r--r-- 1 root root 1308958720 Jul 24 17:27 native-zone-archive.uar
-rw-r--r-- 1 demo staff 675102720 Jul 24 07:37 sol-11_2-42-text-x86.iso
root@global:~# archiveadm info -v ./native-zone-archive.uar
Archive Information
Creation Time: 2014-07-24T21:54:08Z
Source Host: global
Architecture: i386
Operating System: Oracle Solaris 11.3 X86
Recovery Archive: No
Unique ID: e1bf0d42-338b-e879-fec4-ab78290ef55c
Archive Version: 1.0
Deployable Systems
'native-zone'
OS Version: 0.5.11
OS Branch: 0.175.3.0.0.1.0
Active BE: solaris
Brand: solaris
Size Needed: 978MB
Unique ID: f488ea7c-ab1e-6cc4-d407-c60fce1e3818
AI Media: 0.175.3_ai_i386.iso
Root-only: Yes
Next, let's configure a new kernel zone and when we are ready to install it, we will pass in the archive, as shown in
Listing 21:
root@global:~# zonecfg -z converted-zone-kz create -t SYSsolaris-kz
root@global:~# zoneadm -z converted-zone-kz install -a ./native-zone-archive.uar
Progress being logged to /var/log/zones/zoneadm.20140724T233807Z.converted-zone-kz.install
[Connected to zone 'converted-zone-kz' console]
Boot device: cdrom1 File and args: -B install=true,auto-shutdown=true -B aimanifest=/system/shared/ai.xml
reading module /platform/i86pc/amd64/boot_archive...done.
reading kernel file /platform/i86pc/kernel/amd64/unix...done.
SunOS Release 5.11 Version 11.2 64-bit
Copyright (c) 1983, 2014, Oracle and/or its affiliates. All rights reserved.
Remounting root read/write
Probing for device nodes ...
Preparing image for use
Done mounting image
Configuring devices.
Hostname: solaris
Using specified install manifest : /system/shared/ai.xml
solaris console login:
Automated Installation started
The progress of the Automated Installation will be output to the console
Detailed logging is in the logfile at /system/volatile/install_log
Press RETURN to get a login prompt at any time.
23:40:15 Install Log: /system/volatile/install_log
23:40:15 Using XML Manifest: /system/volatile/ai.xml
23:40:15 Using profile specification: /system/volatile/profile
23:40:15 Starting installation.
23:40:15 0% Preparing for Installation
23:40:15 100% manifest-parser completed.
23:40:15 100% None
23:40:15 0% Preparing for Installation
23:40:18 1% Preparing for Installation
23:40:18 2% Preparing for Installation
23:40:19 3% Preparing for Installation
23:40:19 4% Preparing for Installation
23:40:19 5% archive-1 completed.
23:40:21 8% target-discovery completed.
23:40:23 Pre-validating manifest targets before actual target selection
23:40:23 Selected Disk(s) : c1d0
23:40:24 Pre-validation of manifest targets completed
23:40:24 Validating combined manifest and archive origin targets
23:40:24 Selected Disk(s) : c1d0
23:40:24 9% target-selection completed.
23:40:24 10% ai-configuration completed.
23:40:24 9% var-share-dataset completed.
23:40:29 10% target-instantiation completed.
23:40:29 10% Beginning archive transfer
23:40:29 Commencing transfer of stream: ce6d4b69-ad85-e7e1-aaf7-fdbfdc17f001-0.zfs
to rpool
23:40:35 30% Transferring contents
23:40:39 50% Transferring contents
23:40:43 70% Transferring contents
23:40:54 86% Transferring contents
23:41:09 Completed transfer of stream: 'ce6d4b69-ad85-e7e1-aaf7-fdbfdc17f001-0.zfs'
from file:///system/shared/uafs/OVA
23:41:12 Archive transfer completed
23:41:31 90% generated-transfer-965-1 completed.
23:41:31 90% Beginning IPS transfer
23:41:31 Setting post-install publishers to:
23:41:31 solaris
23:41:31 origin: http://ipkg.us.oracle.com/solaris11/dev/
23:41:32 90% generated-transfer-965-2 completed.
23:41:32 Changing target pkg variant. This operation may take a while
23:51:17 90% apply-pkg-variant completed.
23:51:21 Setting boot devices in firmware
23:51:21 91% boot-configuration completed.
23:51:21 91% update-dump-adm completed.
23:51:21 92% setup-swap completed.
23:51:22 92% device-config completed.
23:51:23 92% apply-sysconfig completed.
23:51:23 93% transfer-zpool-cache completed.
23:51:36 98% boot-archive completed.
23:51:36 98% transfer-ai-files completed.
23:51:37 98% cleanup-archive-install completed.
23:51:38 100% create-snapshot completed.
23:51:39 100% None
23:51:39 Automated Installation succeeded.
23:51:39 You may wish to reboot the system at this time.
Automated Installation finished successfully
Shutdown requested. Shutting down the system
Log files will be available in /var/log/install/ after reboot
svc.startd: The system is coming down. Please wait.
root@global:~# zoneadm list -cv
ID NAME STATUS PATH BRAND IP
0 global running / solaris shared
- myfirstkz installed - solaris-kz excl
- iso-kz installed - solaris-kz excl
- native-zone installed /system/zones/native-zone solaris excl
- converted-zone-kz installed - solaris-kz excl
Listing 21
As we can see in Listing 21, the install process completed successfully and we have an installed kernel zone.
Let's boot up our newly converted zone and have a look at it, as shown in Listing 22:
root@global:~# zoneadm -z converted-zone-kz boot
root@global:~# zoneadm list -cv
ID NAME STATUS PATH BRAND IP
0 global running / solaris shared
3 converted-zone-kz running - solaris-kz excl
- duckstack unavailable - solaris-kz excl
- native-zone installed /system/zones/native-zone solaris excl
root@global:~# zlogin converted-zone-kz
[Connected to zone 'converted-zone-kz' pts/1]
Oracle Corporation SunOS 5.11 11.2 June 2014
root@unknown:~# ls
my_special_files
Listing 22
In Listing 22, we can see that the contents of our native zone have been preserved.
