How to Configure Mail Relay in Exchange Server 2016

Checking the built-in relay capabilities in Exchange Server 2016.

Get-AcceptedDomains

 Figure 01

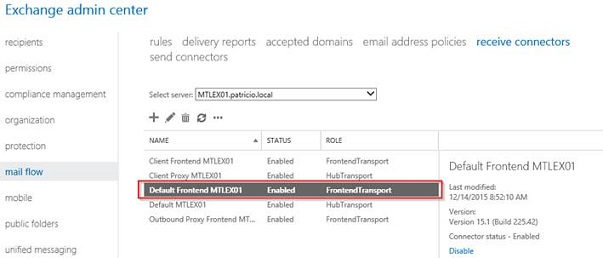

By default, any Exchange Server 2016 will have several connectors and based on the transport pipeline of the product (more details can be seen on this Microsoft article). The Receive Connector that we will be looking into is the Default Frontend , and in order to get there click on mail flow and then Receive Connectors, make sure to select the server from the Select Server list (Figure 02).

 Figure 02

Let’s test that connector, we will create a fake message from a bogus domain to our administrator account that exists on the Exchange Server organization (domain apatricio.local), and see if that message goes through.

The preferable method to test is using telnet utility to connect to the Exchange Server on the 25 port. The entire process is described below and shown in Figure 03. We are using just a couple of commands to test the mail flow. This Microsoft KB explains the entire process.

Note:
If you are using Windows 10/Windows Server 2012 R2 you won’t have Telnet client available out of the box. In order to install it open the PowerShell as administrator and run the following cmdlet: Add-WindowsFeature telnet-client.

telnet 25
Ehlo domain.ca
Mail from: andy@domain.ca
Rcpt to:administrator@patricio.local
Data


Subject: Test #01
This is a test message
.

 Figure 03

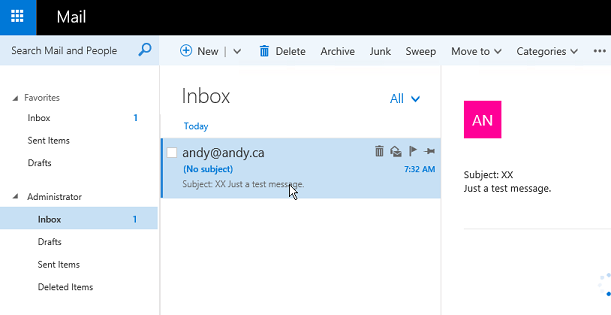

On the end-user side we can check and the result is a new message, as shown in Figure 04.

 Figure 04

That is great, we tested and validated the mail flow on the default receive connector. However, if we try to do the same thing using an external e-mail address we will get an error. In Figure 05, we are trying to send a message to a remote domain (Patricio.ca for example, which is a valid domain on the Internet), the error message that we get is 550 5.7.54 SMTP; Unable to relay recipient in non-accepted domain.

 Figure 05

From the security perspective that is really good, nobody will be able to use our Exchange Server 2016 to relay messages to other domains that we haven’t configured in our Exchange Organization, however for an internal service/application that needs to relay messages to external users, that is not good and we need to allow them to do that.



Creating a Receive Connector to allow relay to external addresses.

The most important thing here is to understand how Exchange works. We know for a fact that any attempt to relay to a valid accepted domain will work, so we are good for internal flow. That may be enough for the vast majority of applications including network devices (scanners, fax machines, and etc.).

In order to allow external relay, we need to create a receive connector. Logged on Exchange Admin Center (ECP), click on Mail flow, Receive Connectors and click on New.

In the new page (Figure 06), label the new receive connector and select Frontend Transport, and select Custom, and click Next.

 Figure 06

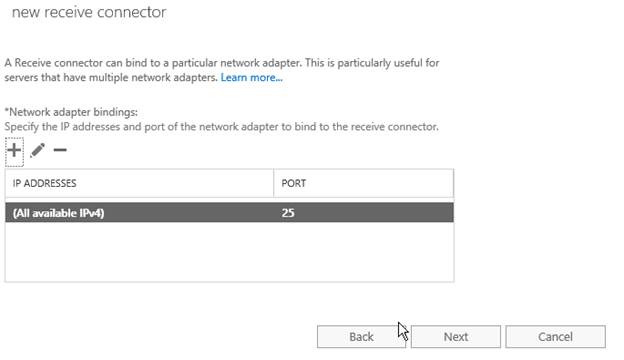

We can bound a receive connector to a specific adapter and/or port (Figure 07). In this case we will leave default settings which is listening on all IPs of the server and on the traditional 25 port. Click on Next.
Note:

Keep in mind that a unique set of IP Address/Port/Remote IP addresses is required for each Receive Connector. At the beginning of this article we pointed out that the server has already several Receive Connectors and by default they are always listening on all available IPv4 and in some specific ports.

 Figure 07

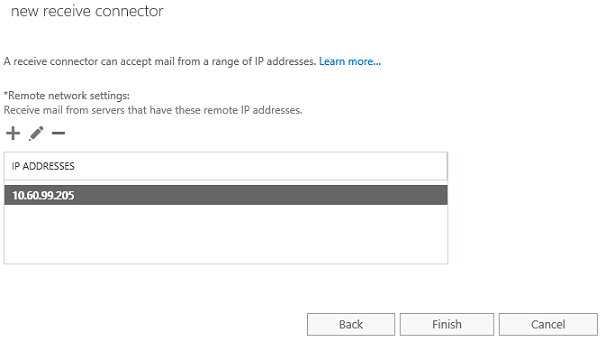

So far in this new receive connector, we have configured values that are already in place (Listening IP and port). The only way to escape an error when completing this wizard is to define the Remote network settings page with the IPs of the internal servers that will be able to relay messages to the outside world (Figure 08).

Note:That was the reason why we selected Custom at beginning of the wizard, because this page is displayed when that option is used. By doing that we make this Receive Connector unique and we can safely click on Finish.

 Figure 08

Before releasing to production/test, we need to work on two details on this newly created Receive Connector: Security and AD permissions.

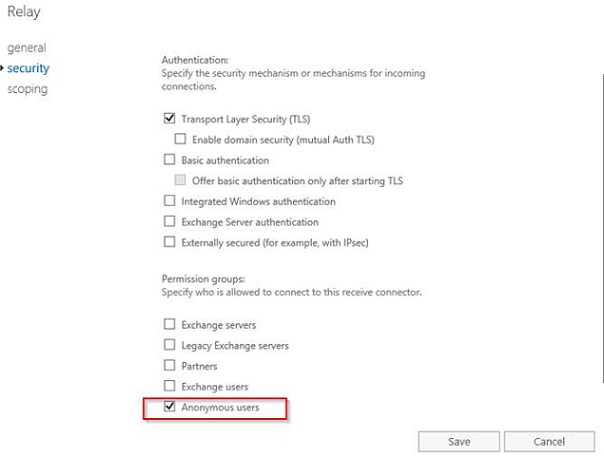

The security can be done using Exchange Admin Center. Double click on the new receive connector, click Security, and we can start simple by selecting Anonymous users where we say that the relay will be open (not yet) without authentication. It is not the best practice or ideal but can be used in some controlled scenarios (Figure 09).

 Figure 09

The next step is to configure a specific permission at the Receive Connector level. If we run the Get-ReceiveConnector we will get a full list of all Receive Connectors, however we want to isolate the connector which we will apply the relay permission, and for we need to use \ after the cmdlet, as shown in Figure 10 and listed below.

Get-ReceiveConnector
Get-ReceiveConnector mtlex01\relay

 Figure 10






Having isolated the Receive Connector, we can apply the Active Directory Permission and we can use the following cmdlet (Figure 11).

Get-ReceiveConnector \ | Add-ADPermission –User “NT Authority\Anonymous Logon” –ExtendedRights “ms-Exch-SMTP-Accept-Any-Recipient”

 Figure 11



External relay test…

Now that we tested the internal relay, and created a Receive Connector to handle External Relay, we can start testing the process. We will perform a similar telnet test trying to send a message to an external e-mail, and at this time the Exchange Server will not refuse our connection but will let us to go through, as shown in Figure 12.

 Figure 12



Conclusion

In this article we went through the steps to configure an internal and external relay connector in Exchange Server 2016.
